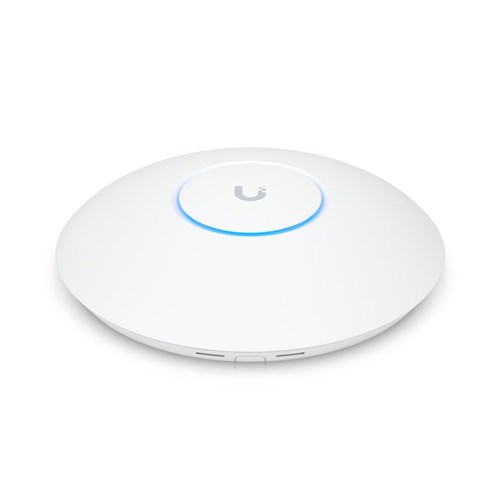

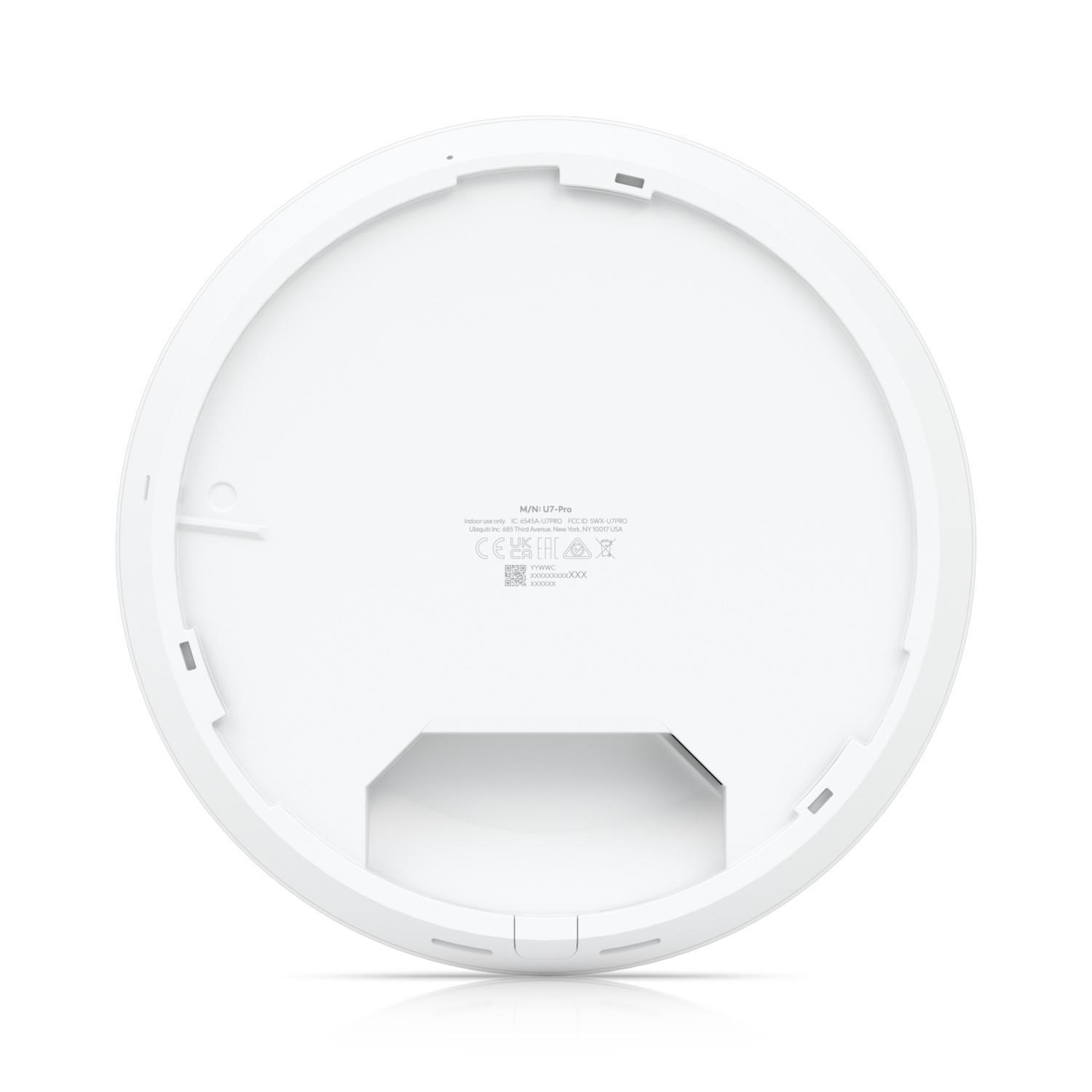

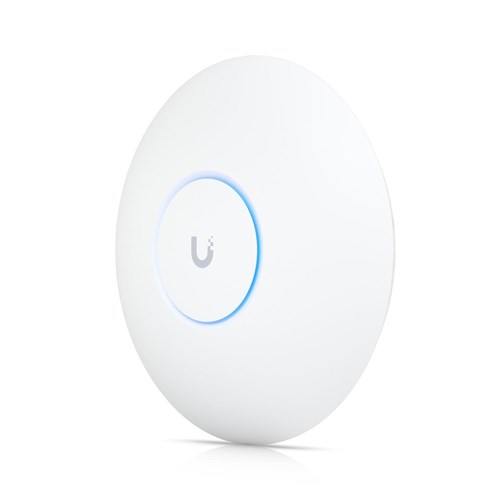

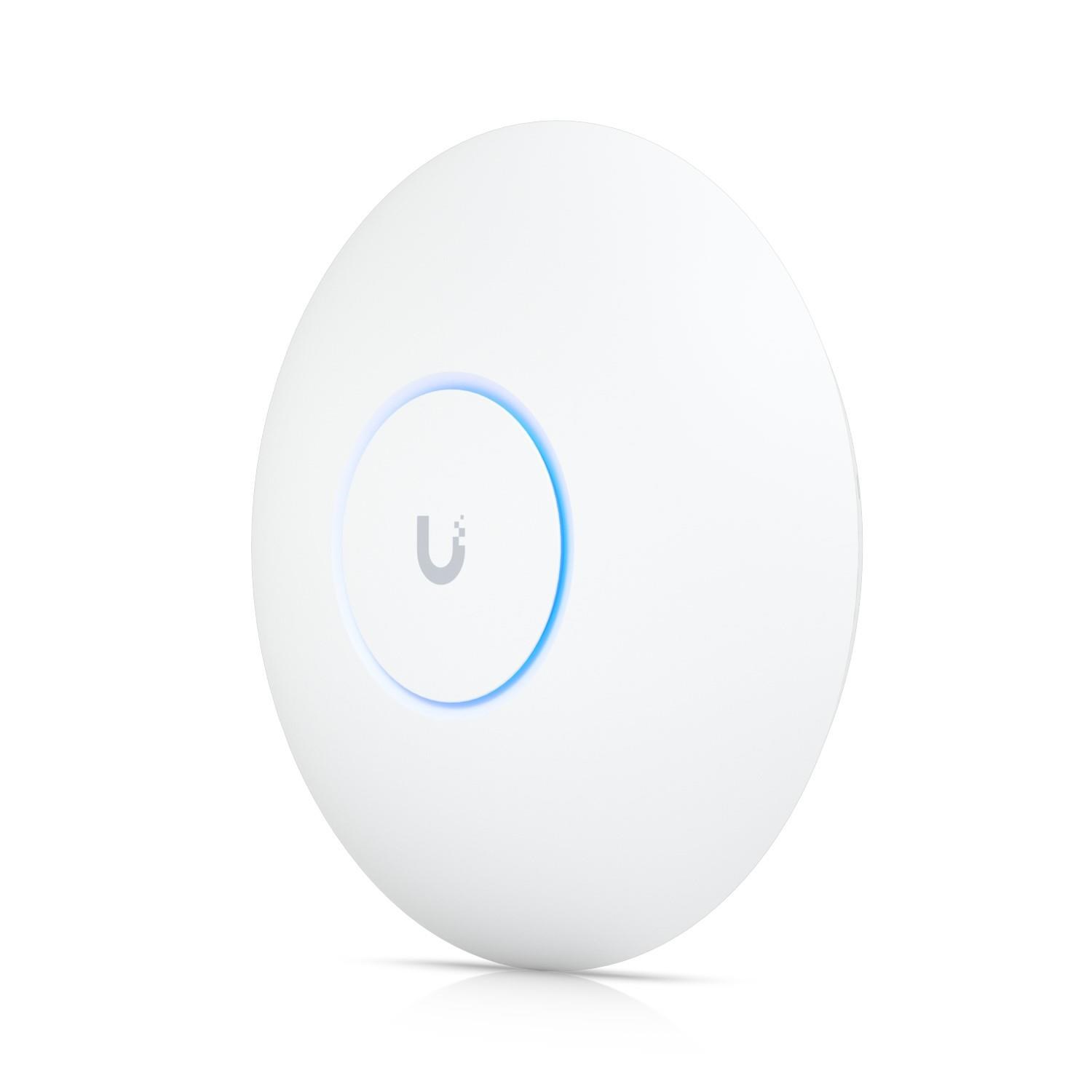

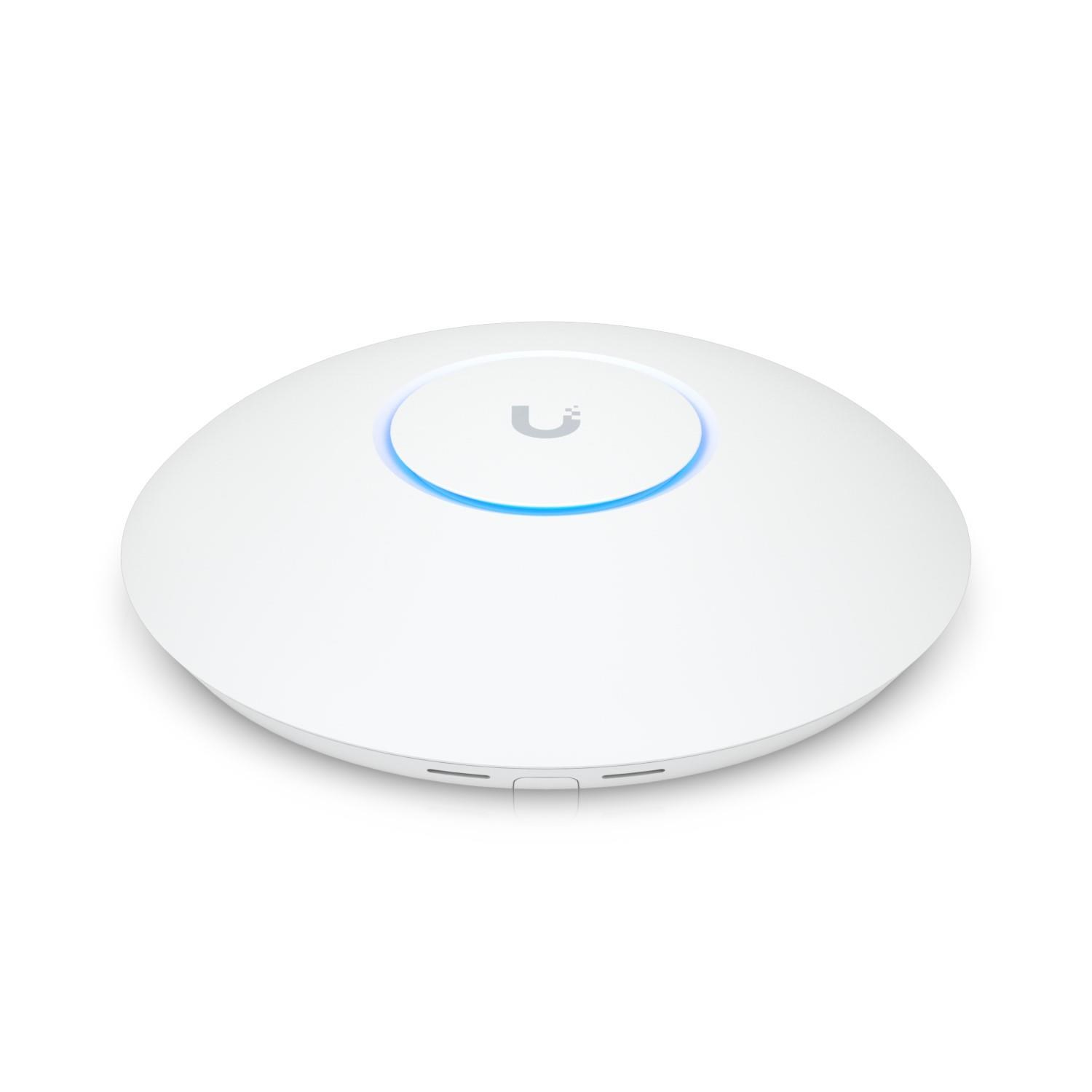

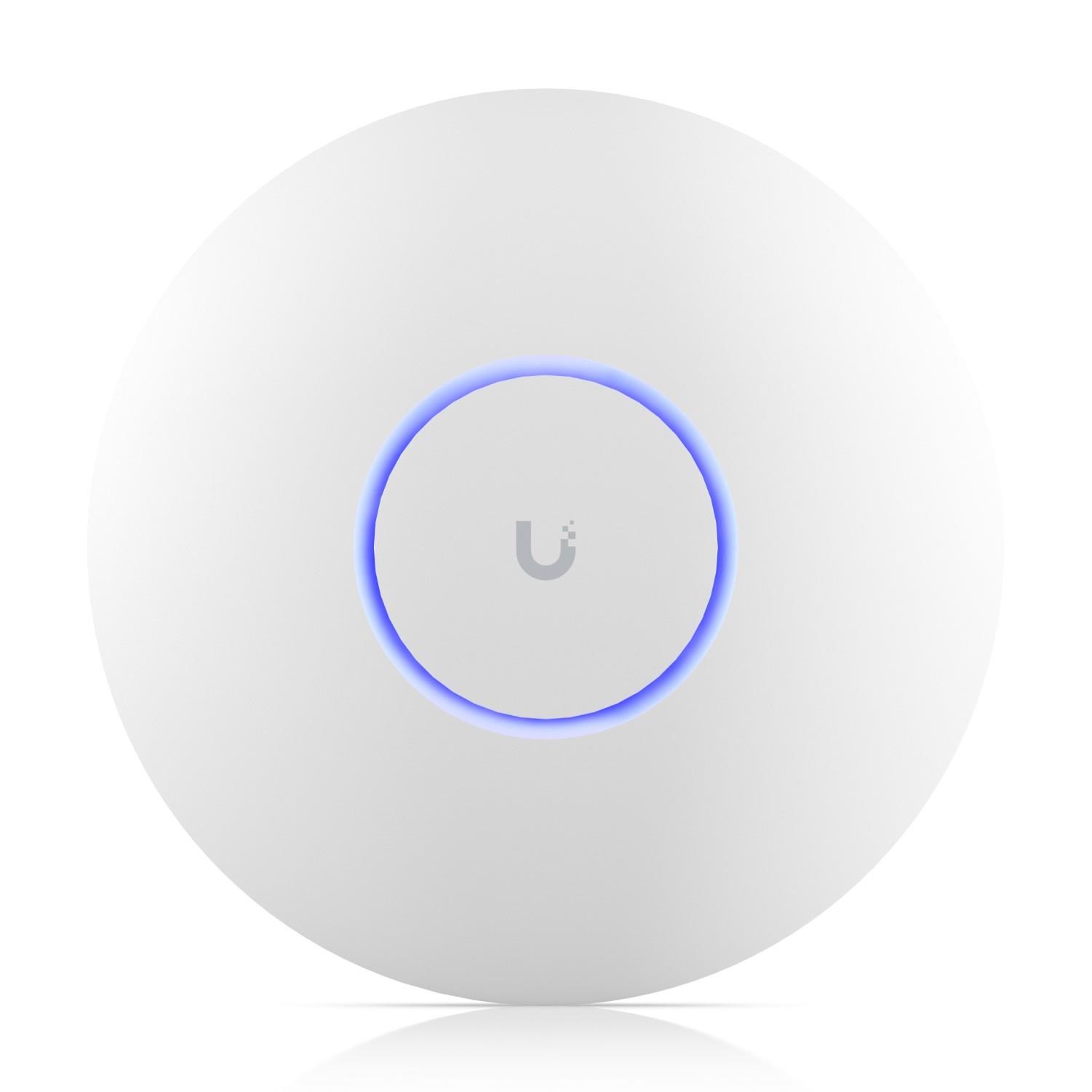

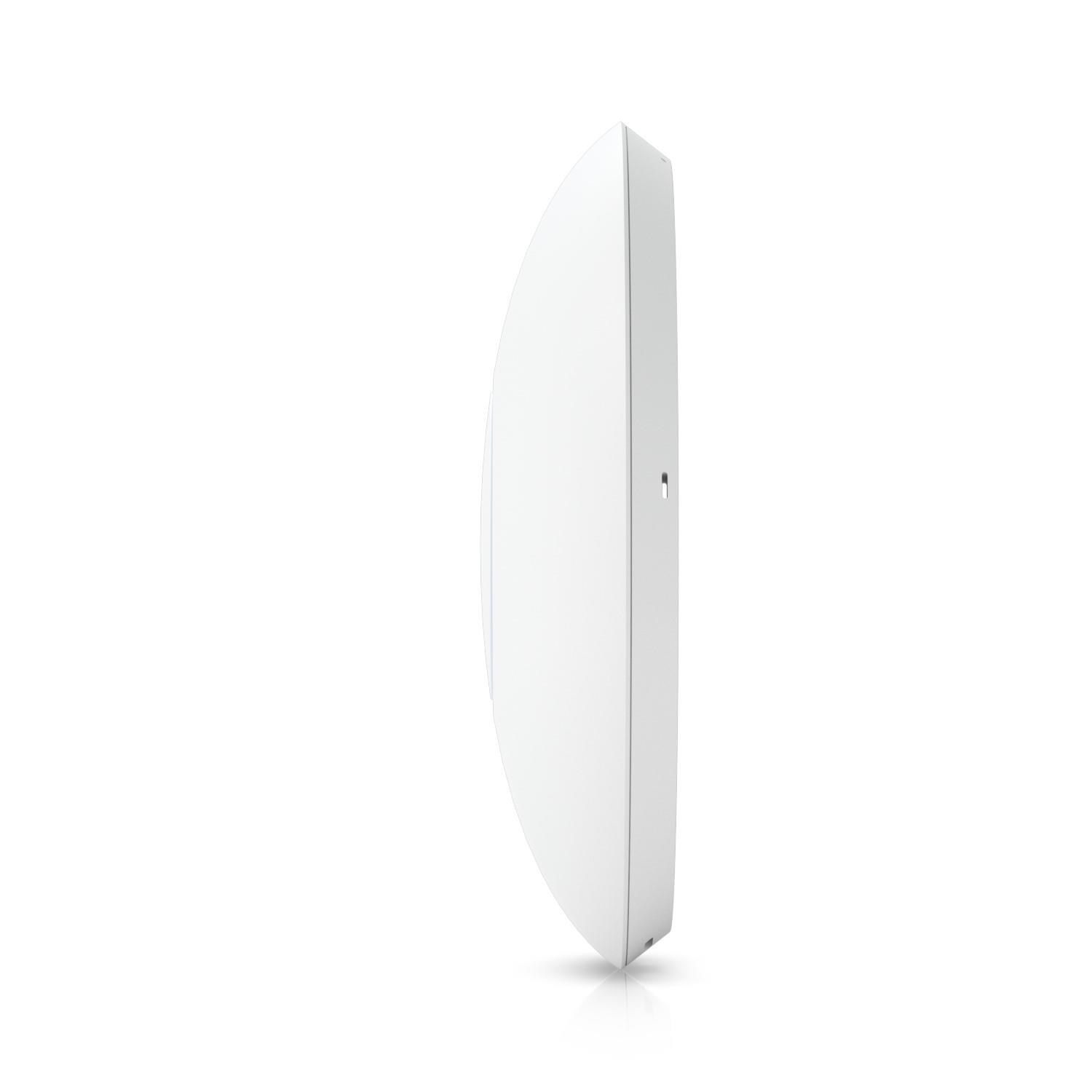

Ubiquiti U7-Pro UniFi WiFi 7 AP/Ceiling-Mount/AP 6 GHz Support/2.5 GbE Uplink/9.3 Gbps Over-the-air Speed/PoE+ Power/ 300+ Connect Device
Ceiling-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support for interference-free WiFi in demanding. large-scale environments.
- WiFi 7 with 6 GHz support
- 6 spatial streams
- 140 m² (1.500 ft²) coverage
- 300+ connected devices
- Powered using PoE+
- 2.5 GbE uplink
Note. 6 GHz operation is supported in these countries.
Multi-Link Operation (MLO) capability is coming soon and will be provided via software update.
MECHANICAL
Dimensions: Ø206 x 46 mm (Ø8.1 x 1.8')
Weight: 680 g (1.5 lb)
Enclosure material: Polycarbonate. metal
Mount material: Stainless steel (SUS304). galvanized steel (SGCC)
HARDWARE
Networking interface: (1) 1/2.5 GbE RJ45 port
Management interface: Ethernet
Power method: PoE+
Power supply: UniFi PoE switch
Supported voltage range: 44—57V DC
Max. power consumption: 21W
LEDs: White/blue
Button: Factory reset
Mounting: Wall/ceiling (Included)
Ambient operating temperature: -30 to 60° C (-22 to 140° F)
Ambient operating humidity: 5 to 95% noncondensing
Certifications: CE. FCC. IC
SOFTWARE
WiFi standards: 802.11a/b/g/n/ac/ax/be (WiFi 6/6E. WiFi 7)
Wireless security: WPA-PSK. WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID: 8 per radio
VLAN: 802.1Q
Advanced QoS: Per-user rate limiting
Guest traffic isolation : Supported
Concurrent clients: 300+
APPLICATIONS REQUIREMENTS
UniFi Network Version: 8.0.26 and later
UniFi OS: Version 3.2 and later
