Overview

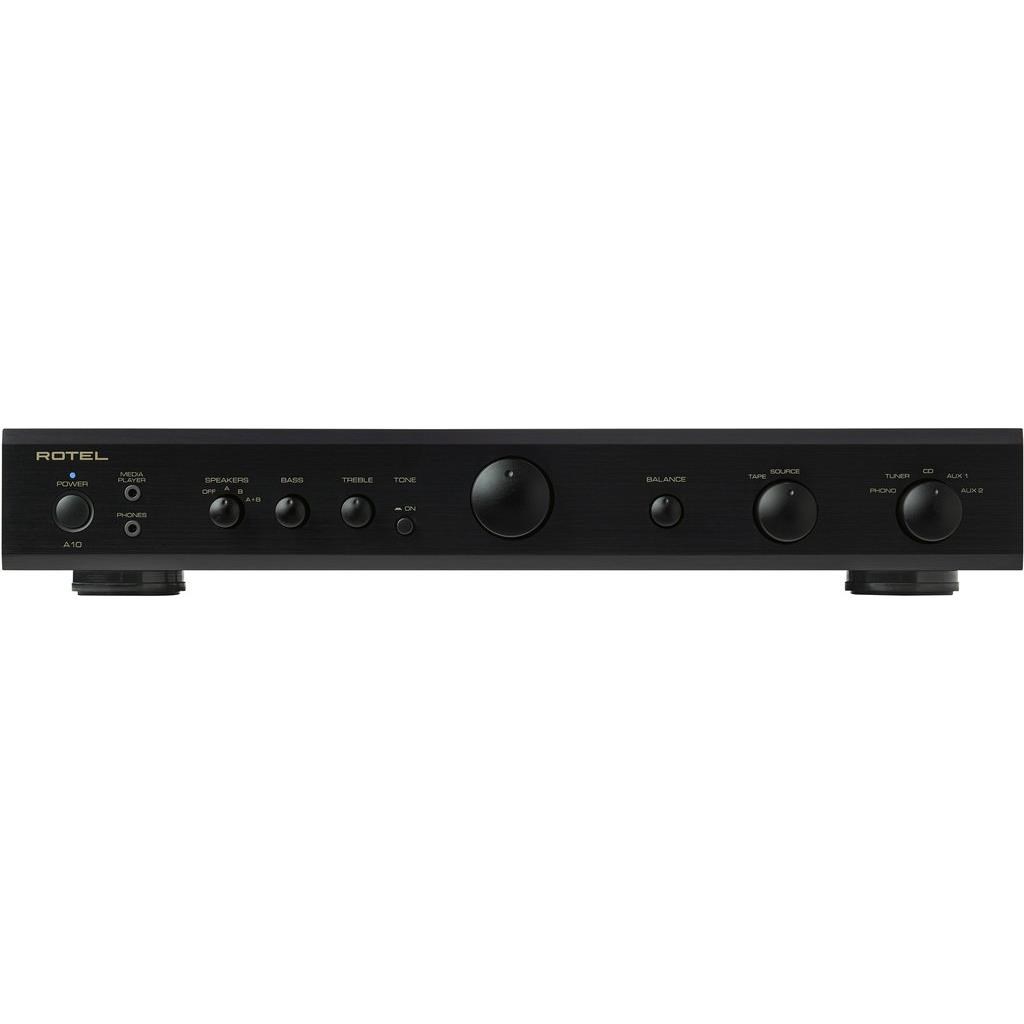

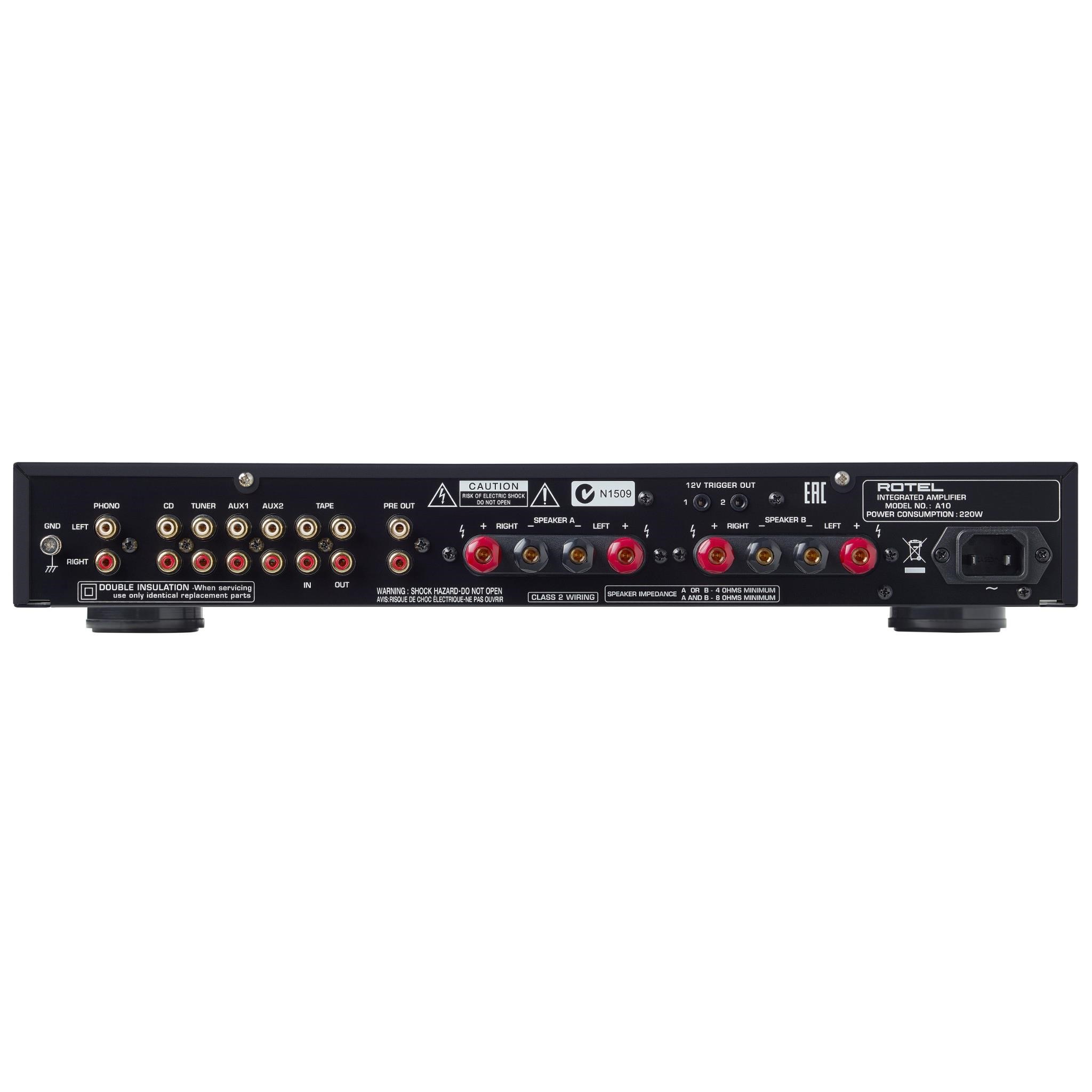

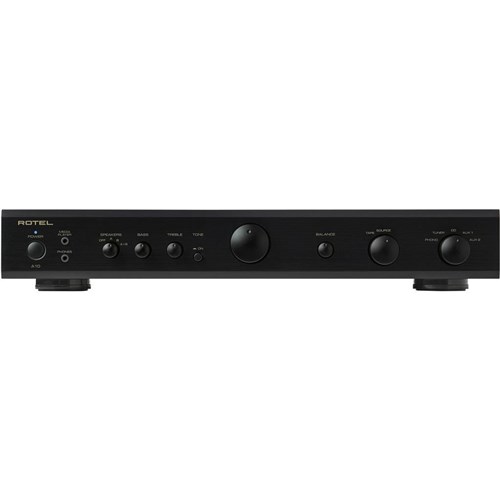

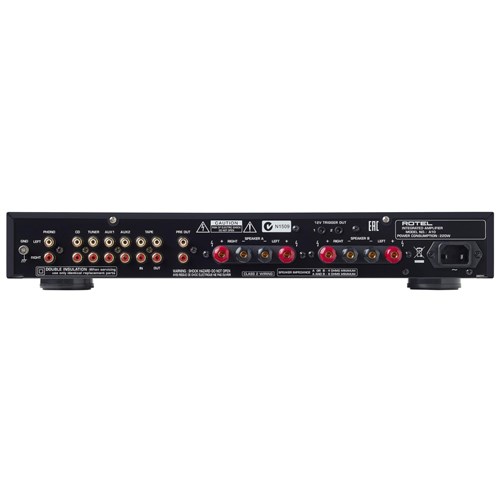

The Rotel A10 is a perfect amp for vinyl lovers and hi-fi beginners. with timeless style and rich. classic analogue sound. Showcasing the Japanese brand’s decades of experience in making high-quality audio equipment. the A10 is crafted to exacting standards that ensure you’ll be enjoying its unmatched sound for years to come. With a built-in phono stage. the A10 is a dream fit for the discerning vinyl collector. and its all-analogue design will preserve the warmth of your collection for a true vintage hi-fi experience.
Key Features
Continuous Power Output
40W/Ch (All channels driven. 8O)
Total Harmonic Distortion
(THD)(20Hz–20kHz) <0.03%
Frequency Response
Line Level Inputs: 10Hz - 40kHz ±1dB
Phono Input: 20Hz - 15kHz ±0.3dB
S/N Ratio (IHF 'A' Weighted)
Line Level Inputs: 100dBPhono Input: 80dB
Intermodular Distortion
(60Hz:7kHz. 4:1)<0.03%
Damping Factor
180
Speaker Impedance
4O minimum
Input Sensitivity
Line Level Inputs: 150mV
Phono Input (MM): 2.5mV
Input Impedance
Line Level Inputs: 24kO
Phono Input (MM): 47kO
Input Overload
Line Level Inputs: 5V
Phono Input: 180mV
