HomePlug AV Standard Compliant
The HomePlug AV standard creates high-speed data transfer rates of up to 600Mbps to support all your online activities.
One-Button Security
Simply push the Pair button on the adapters. and quickly set up a hassle-free powerline network.
Plug. Pair and Play!
Powerline adapters and extenders must be deployed in a set of two or more.
Internet from Any Outlet

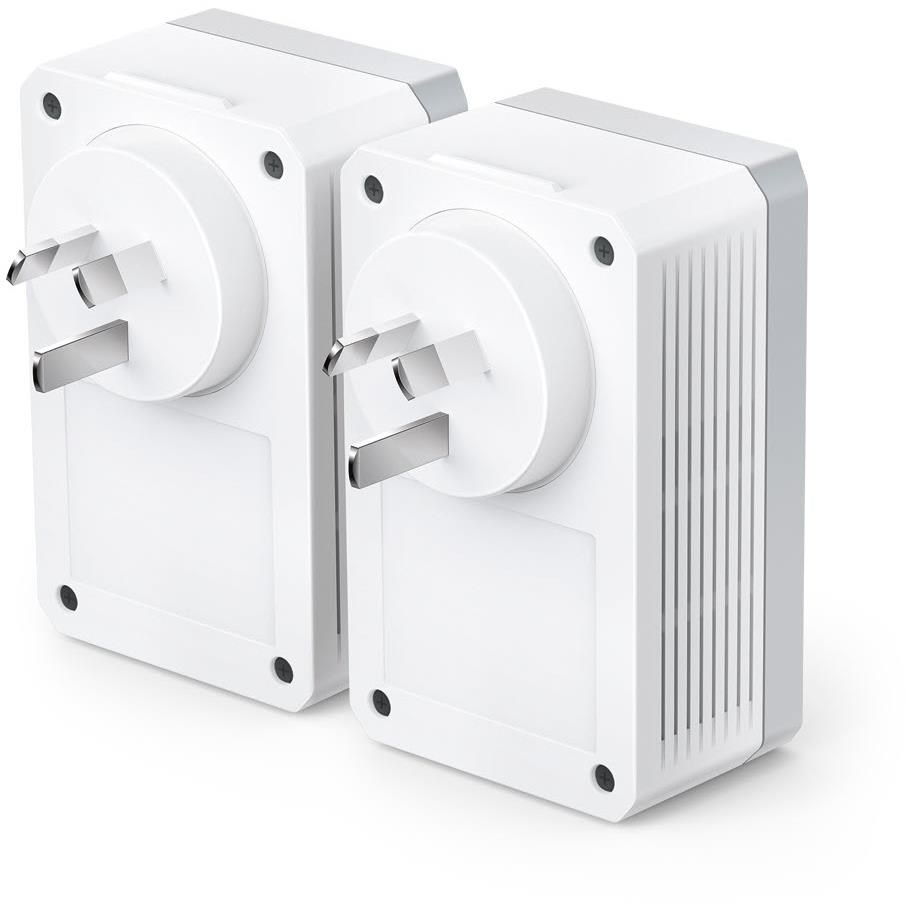

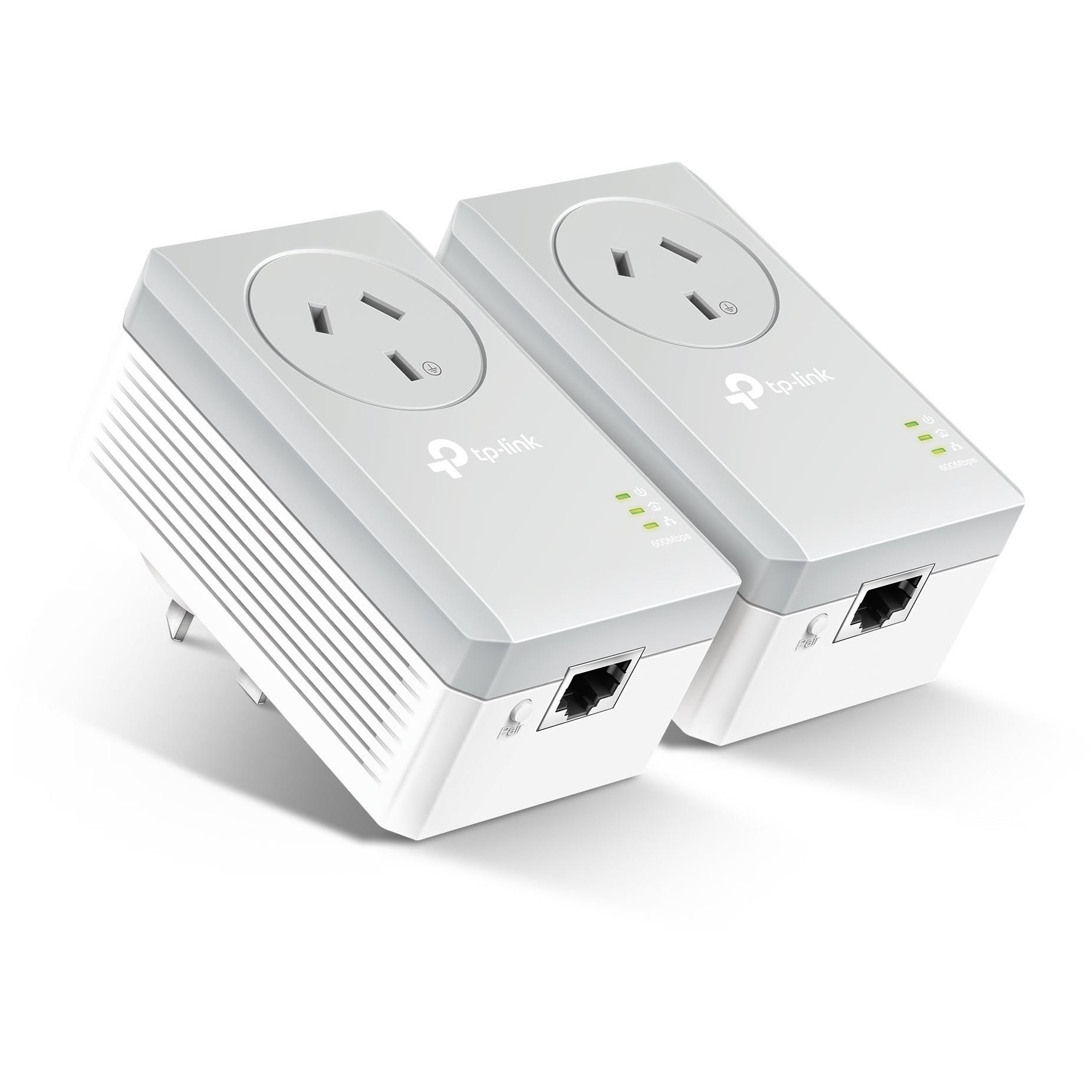

The AV600 Passthrough Powerline Starter Kit brings internet to any area with a power outlet using your home's electrical wiring.
Speed
· Ultra-fast Powerline Speed – HomePlug AV standard compliant. high-speed data transfer rate of up to 600Mbps. ideal for Ultra HD streaming and online gaming
· Ethernet Port – The Ethernet port allows your TV. game console or PC to connect to the internet at high speeds
Range
· 300 Meters Range – Up to 300 meters / 1000 feet range over the existing household power circuit.
Reliability
· Mains Filter – Mains Filter inside the outlet reduces electrical noise interference and improves powerline communication performance
Ease of Use
· Plug. Pair and Play – Plug. pair and play. no configuration required
· No New Wires – No new wires. use existing electrical wiring to expand your home network
· Keep Your Outlet – An integrated socket lets you power regular devices as normal. and a built-in noise filter prevents them from interrupting the powerline signal.
· TP-Link tpPLC – Allows you to easily manage your network using the tpPLC Utility
Security
· Pair Button – 128-bit AES encryption easily at a push of the 'Pair' button
Energy Saving
· Power Saving – Power Saving Mode helps reducing power consumption by up to 85%
Specifications
Hardware
· Plug Type: AU
· Standards and Protocols: HomePlug AV. IEEE 1901. IEEE 802.3. IEEE 802.3u
· Power Consumption: Maximum: 2.60W
Typical: 2.30W
Standby: 0.50W
· Range: 300 Meters over electrical circuit
· Interface: Ethernet Port. Power Socket
· Button: Pair Button
· LED Indicator: Power. Powerline. Ethernet
· Dimensions (W x D x H): 3.7 x 2.3 x 1.7 in (95 x 58 x 42 mm)
Software
· Modulation Technology: OFDM (PLC)
· Encryption: Powerline Security: 128-bit AES
Others
· Certification: RCM. RoHS
· Package Contents:

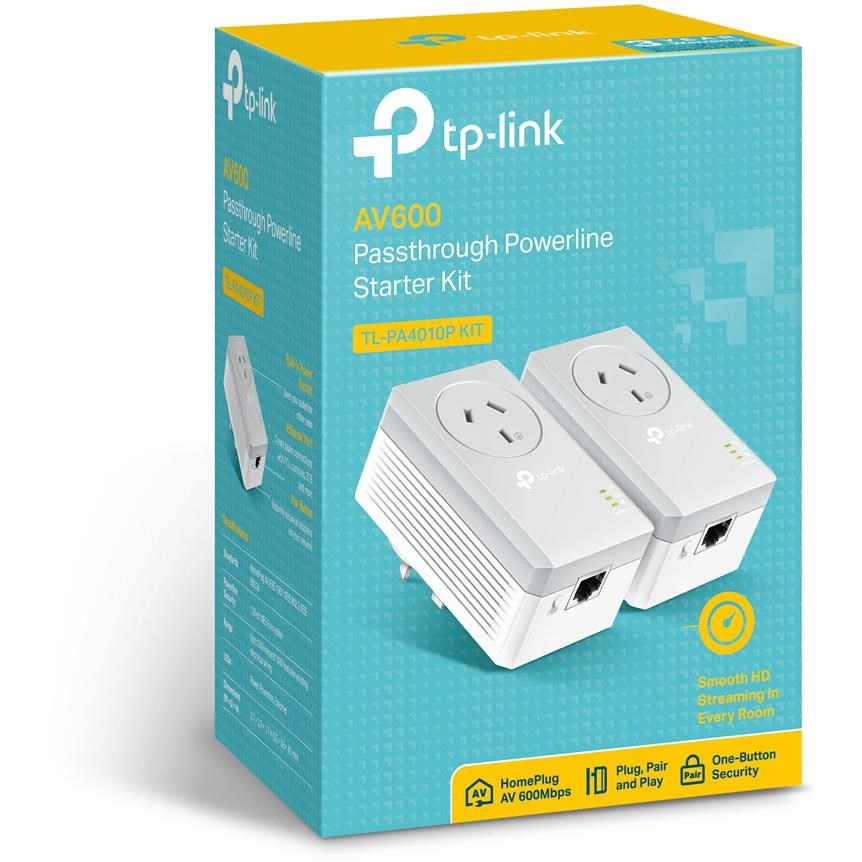

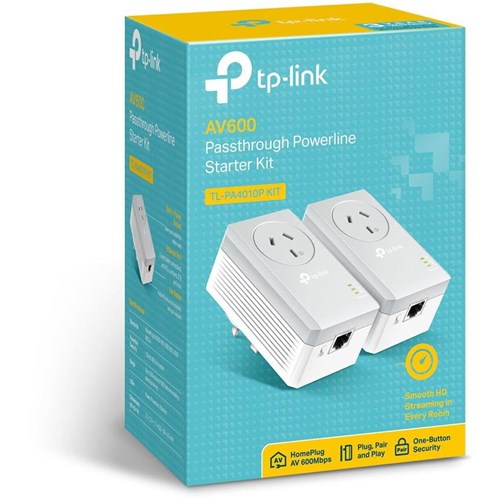

AV600 Passthrough Powerline Adapter 2 * TL-PA4010P
2 * Ethernet Cable
Quick Installation Guide
· System Requirements:
Windows 2000/XP/2003/Vista. Windows 7/8/8.1/10. Mac. Linux
· System Requirements for tpPLC Utility:
Windows 10/8.1/8/7/Vista/XP and Mac OS X (10.7 or later)
· Environment:
Operating Temperature: 0°C~40°C (32°F ~104°F)
Storage Temperature: -40°C~70°C (-40°F ~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
* Compatible with all HomePlug AV & AV2 Standard Powerline adapters.
* Listed HomePlug AV speeds refer to the theoretical maximum physical-layer data transfer rate. Actual data speeds vary and are influenced by the home’s Wi-Fi/electrical/physical environment. and if adapters are placed on the same home circuit.
Specifications are subject to change without notice. TP-Link is a registered trademark of TP-Link Technologies Co.. Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders. Copyright ©2018 TP-Link Technologies Co.. Ltd. All rights reserved
