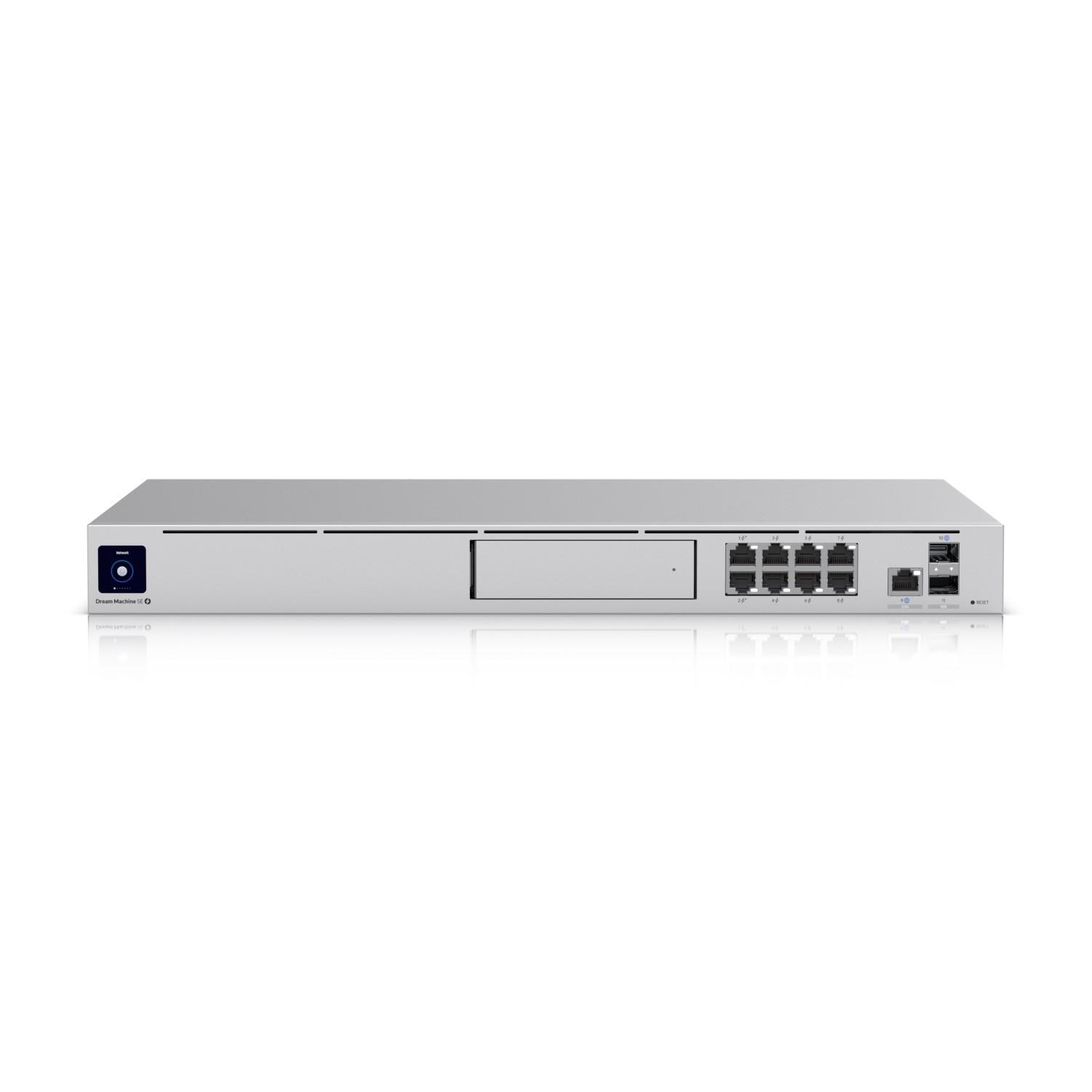

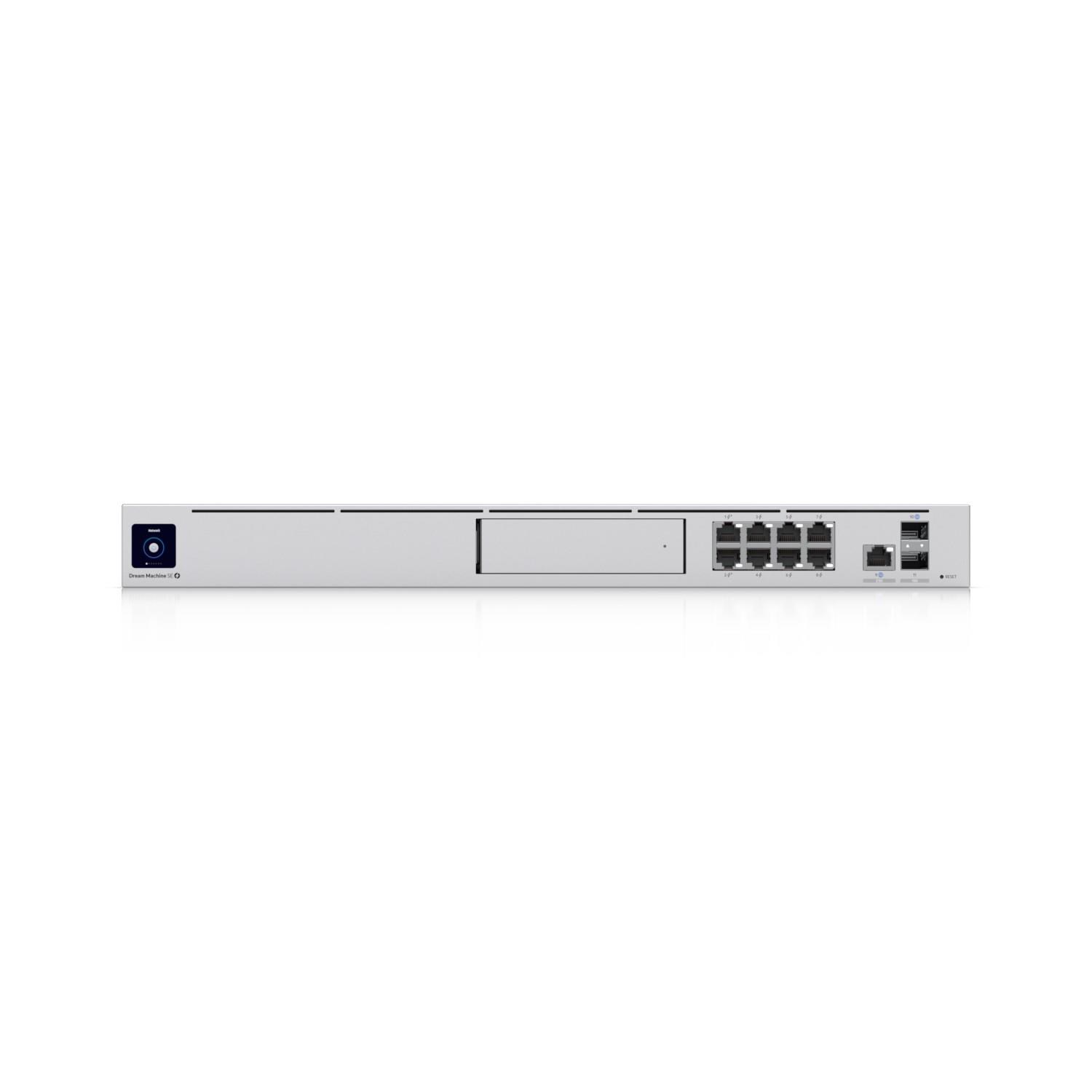

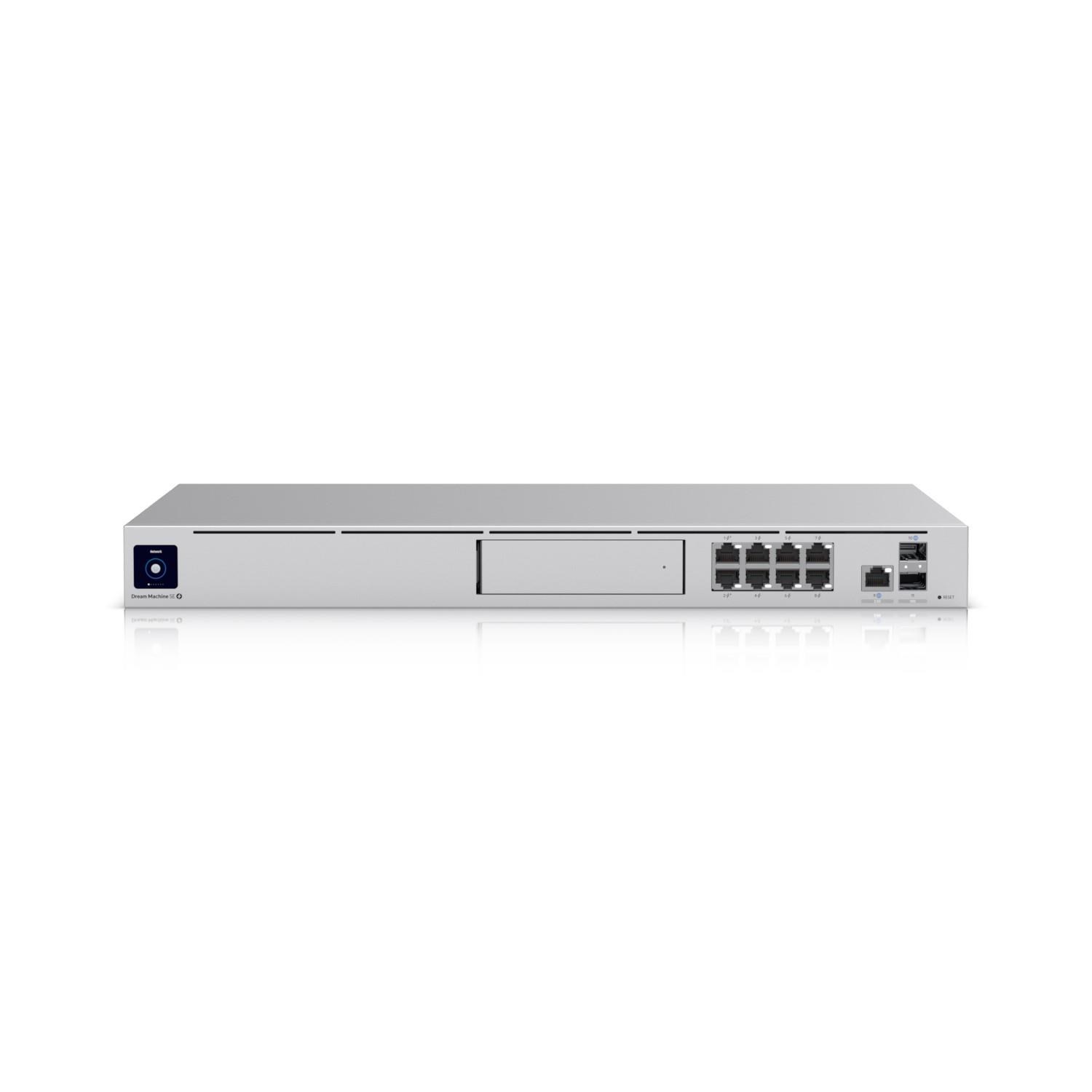

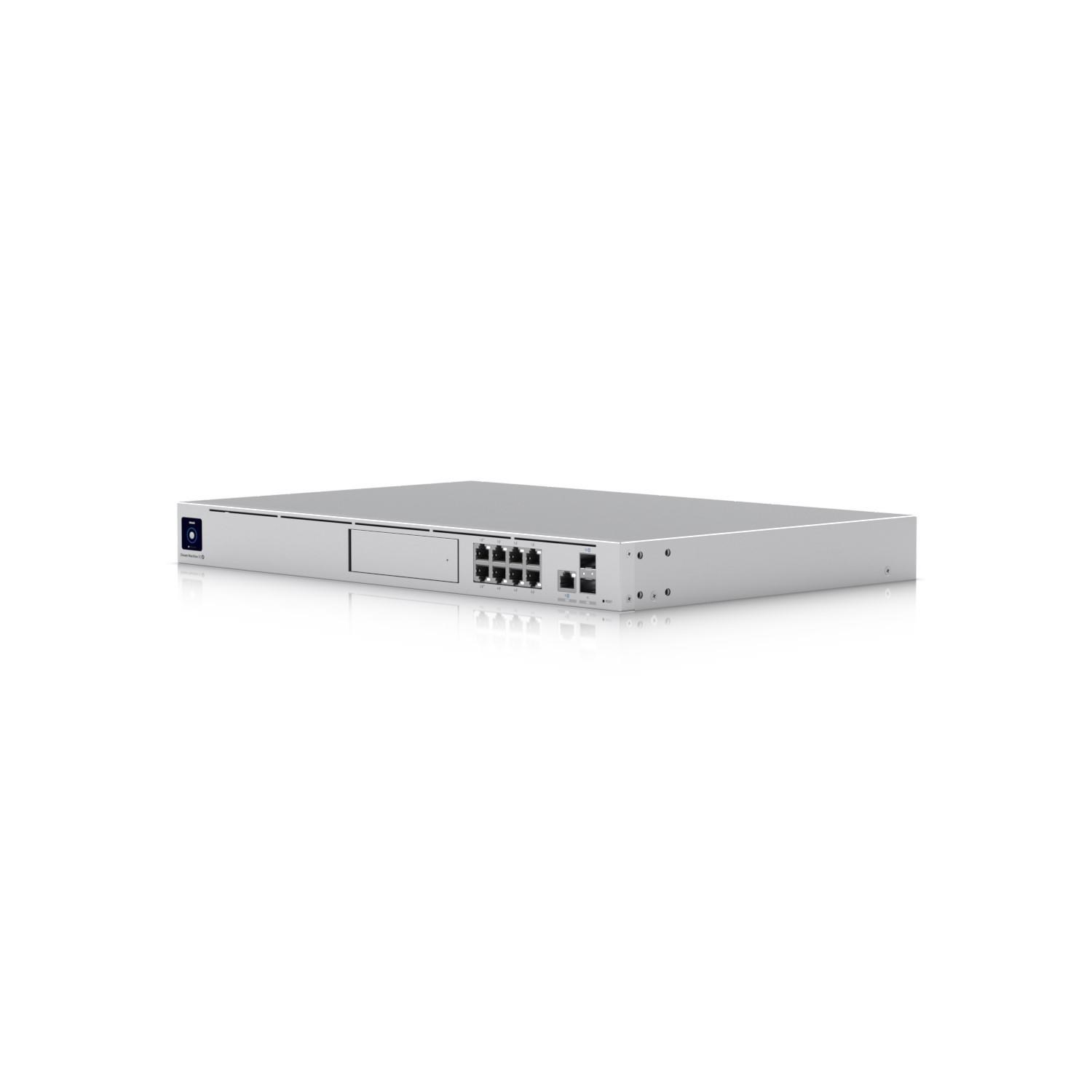

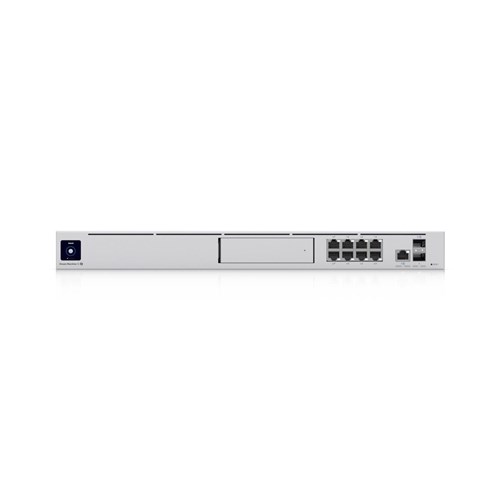

Ubiquiti UDM-SE Dream Machine Special Edition Enterprise-Grade/UniFi OS Console/All-In-One Unifi Solution/8x GbE PoE RJ45 Ports/3.5' HDD Bay
10G Cloud Gateway with 100+ UniFi device / 1.000+ client support. 3.5 Gbps IPS routing. and built-in PoE switching.
- Includes full UniFi application suite for device management
- 3.5+ Gbps routing with IDS/IPS
- (1) 10G SFP+*. (8) GbE RJ45 LAN ports including (2) PoE+. and (6) PoE
- (1) 10G SFP+*. (1) 2.5 GbE RJ45 WAN ports
- (1) 3.5' NVR HDD bay
- Built-in 128 GB SSD for NVR detection recordings
- 1.3' touchscreen
*Pair with an official SFP+ Module or SFP+ to RJ45 Adapter for the best experience
MECHANICAL
Dimensions: 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2')
Weight: 5 kg (10.9 lb)
Enclosure material: Aluminium CNC. SGCC steel
Mount material: SGCC steel
HARDWARE
Processor: Quad-core ARM® Cortex®-A57 at 1.7 GHz
System memory: 4 GB DDR4
On-board storage: 16 GB eMMC ; Integrated 128 GB SSD
Management interface: Ethernet. Bluetooth
Networking interface:
LAN: (8) GbE RJ45 ports; (1) 10G SFP+ port
WAN: (1) 2.5 GbE RJ45 port; (1) 10G SFP+ port
PoE interface: (6) PoE (Pair A 1. 2+; 3. 6-); (2) PoE+ (Pair A 1. 2+; 3. 6-)
IDS/IPS throughput: 3.5 Gbps* *Measured with iPerf3 on a DHCP network. Performance may be reduced with PPPoE depending on ISP implementation.
Power method: (1) Universal AC input. 100—240V AC. 4.4A Max.. 50/60 Hz ; (1) USP-RPS DC input. 52V DC. 3.94A
Power supply: AC/DC. internal. 240W
Supported voltage range: 100—240V AC
Max. power consumption: 50W (Excluding PoE output)
PoE budget: 180W
Max. PoE wattage per port by PSEL: PoE: 15.4W ; PoE+: 30W
Voltage range PoE mode: PoE: 44—57V ; PoE+: 50—57V
ESD/EMP protection: Air: ± 15kV. contact: ± 8kV
LCM display: (1) 1.3' touchscreen
Button: Factory reset
Ambient operating temperature: -10 to 40° C (14 to 104° F)
Ambient operating humidity: 5 to 95% noncondensing
Certifications: CE. FCC. IC
GATEWAY FEATURES
Performance
Redundant WAN with failover and load balancing
WiFi QoS with UniFi Aps
Application. domain. and country-based QoS
Application and device type identification
Additional internet failover with LTE Backup
Internet quality and outage reporting
Next-generation security
Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content. country. domain. and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall
Advanced networking
License-free SD-WAN
WireGuard. L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport and Identity VPN
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IGMP proxy
IPv6 ISP support
LEDs
Ethernet : White: link/activity
SFP+: White: link/activity
HDD: White: disk activity ; Amber: disk error
RPS: Blue: ready
