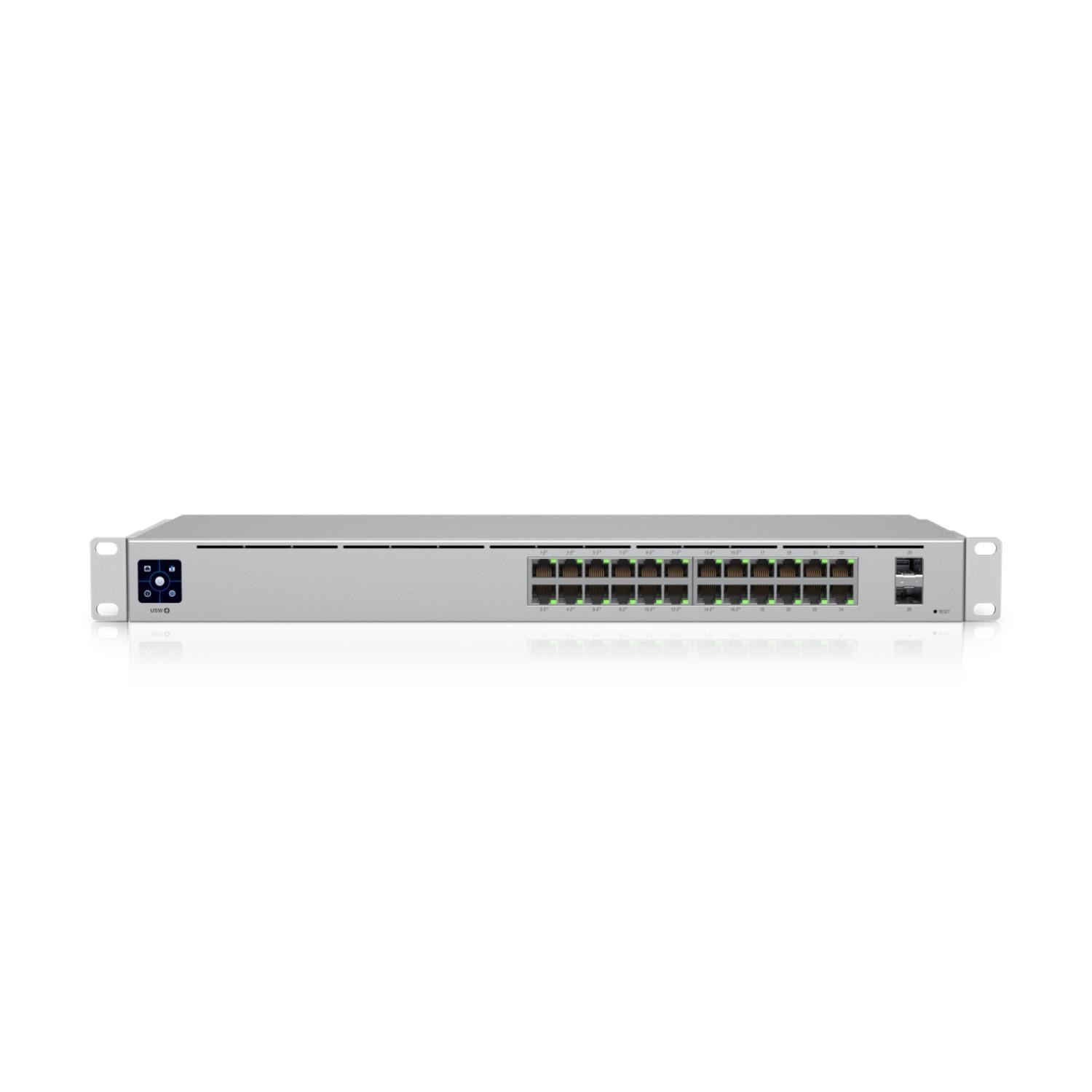

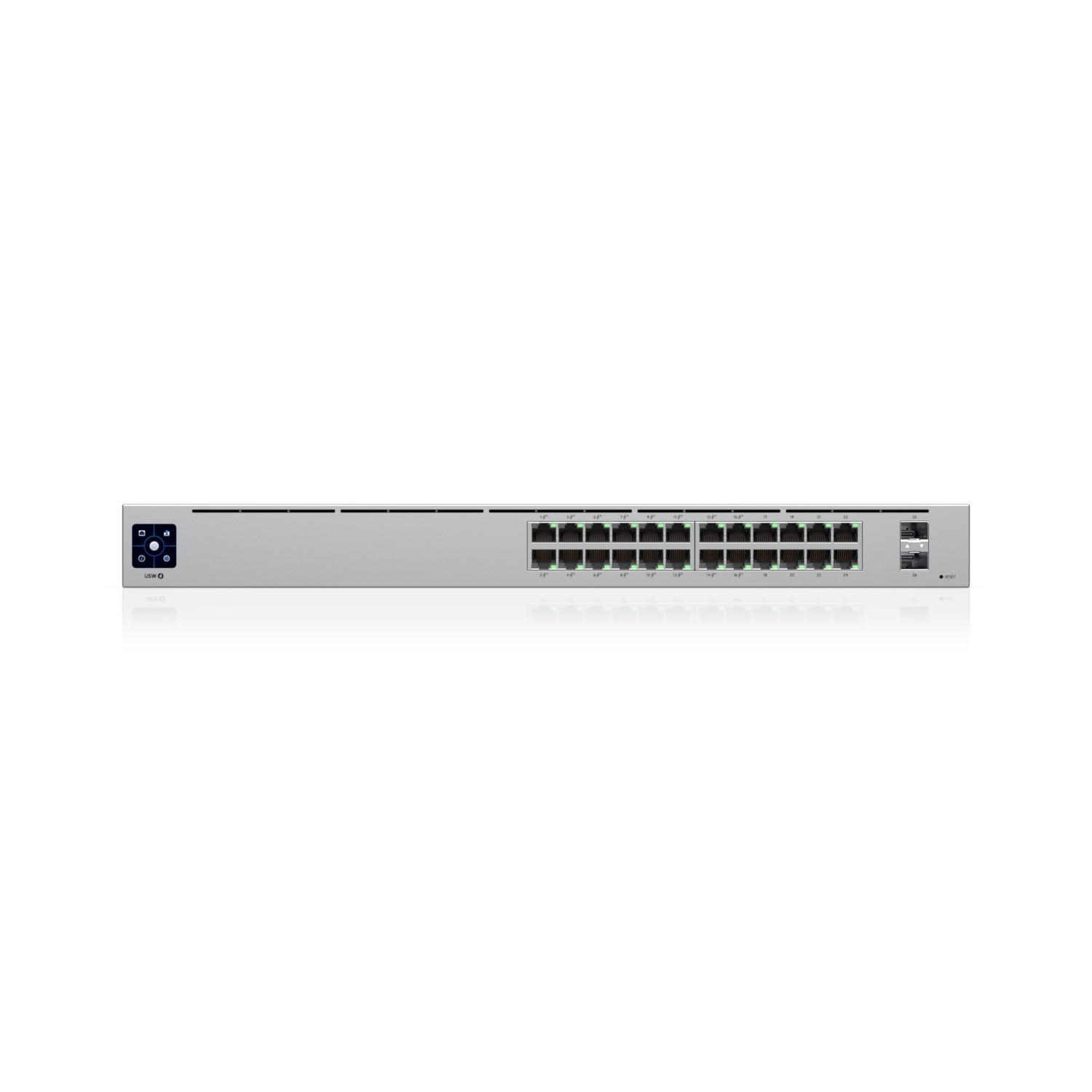

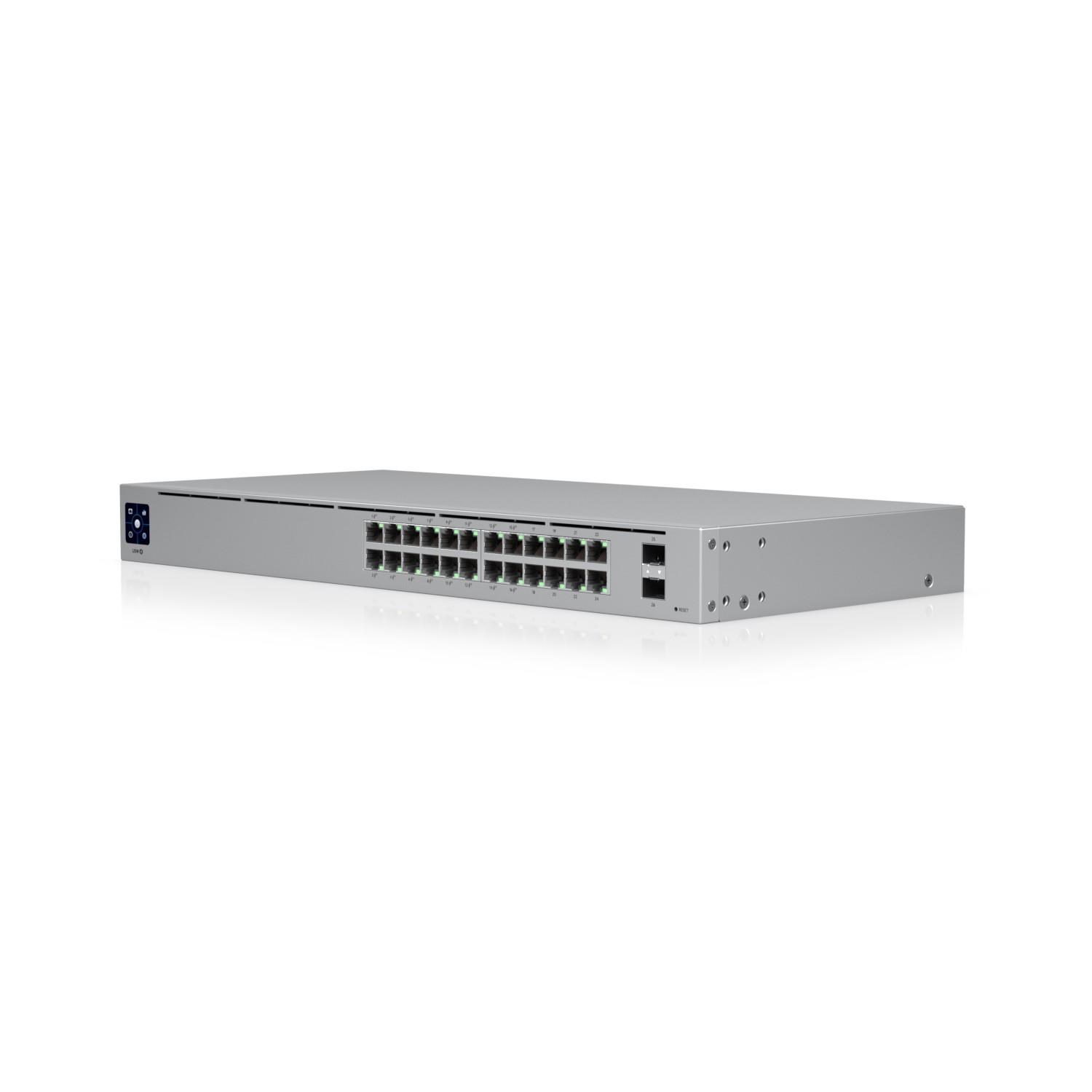

Ubiquiti USW-24-POE UniFi 24 Port Managed Gigabit Switch/16x PoE+ Ports/8x Gigabit Ethernet Ports/2xSFP/95W/Touch Display/Fanless - GEN2
A 24-port. Layer 2 PoE switch with a fanless cooling system.
- (16) GbE PoE+. (8) GbE ports
- (2) 1G SFP ports
- 95W total PoE availability
- Fanless. silent cooling
MECHANICAL
Dimensions: 442 x 200 x 44 mm (17.4 x 7.9 x 1.7')
Weight:
Without mounting brackets: 3 kg (6.6 lb)
With mounting brackets: 3.1 kg (6.8 lb)
Enclosure material: SGCC steel
HARDWARE
Management interface Ethernet In-Band
Networking interface
(24) GbE RJ45 ports
(2) 1G SFP ports
PoE interface
(16) PoE/PoE+ (Pins 1. 2+; 3. 6-)
Total non-blocking throughput: 26 Gbps
Switching capacity: 52 Gbps
Forwarding rate: 38.69 Mpps
Power method Universal input. 100—240V AC. 50/60 Hz
Power supply: AC/DC. internal. 120W
Supported voltage range: 100—240V AC
Max. power consumption: 25W (Excluding PoE output)
Total available PoE: 95W
Max. PoE wattage per port by PSE: PoE+: 32W
Voltage range PoE mode: PoE: 44—57V PoE+: 50—57V
ESD/EMP protection: Air: ± 16kV. contact: ± 12kV
LCM display: (1) 1.3' touchscreen
Button: Factory reset
Shock and vibration: ETSI300-019-1.4 Standard
Ambient operating temperature: -5 to 40° C (23 to 104° F)
Ambient operating humidity: 10 to 90% noncondensing
Certifications: CE. FCC. IC
SWITCHING FEATURES
Layer 2 features
IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
LEDs
System: Status
Ethernet: PoE. Speed/link/activity
SFP: Link/activity
APPLICATION REQUIREMENT
UniFi Network: Version 7.2.94 and later
